Solar
Power Grid Inverter
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |
|
|
|
|
 |
Download
Brochure |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Manufacturer
: ACPCPOWER
|
|
|
|
AP
PV PV- series (1 phase & transformer type)
|
|
|
|
Items |
|
Contents
|
|
|
|
Model
Name |
|
APPV-C1025L |
|
APPV-C103L |
|
|
|
Operation
method |
Output
operating method |
|
Power
plant line connected type |
|
|
|
Input
controlling method |
|
MPPT
(Maximum power point tracking) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Input |
Maximum
voltage |
|
450VDC |
|
|
|
Range
of MPP voltage |
|
170
~ 450 VDC |
|
|
|
Maximum
inputted power current |
|
15A |
|
14A |
|
|
|
Phase |
|
1
phase |
|
|
|
Normal
power |
|
2.5kW |
|
3kW |
|
|
|
Normal
voltage |
|
AC220V
+13V, -13V |
|
|
|
Normal
hertz |
|
60Hz
+0.2Hz, -0.2Hz |
|
|
|
Normal
distortion |
|
Under
4% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
System
specification |
Efficiency |
|
Over
94% |
|
|
|
Overload |
|
110%,
10 minutes |
|
|
|
Cooling
method |
|
Natural
air cooling |
|
|
|
Display |
|
Character
LCD & Keys |
|
|
|
Interface |
|
RS-232C/422
(Option) |
|
|
|
Protection |
|
For
over-under voltage, over-under hertz,
over current, system heating, single operation (Antilslanding, within
0.5 second) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Condition |
Operating
temperature |
|
0
~ 40 °C |
|
|
|
Operating
humidity |
|
0
~ 95% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Manufacturer
: ACPCPOWER |
|
|
|
|

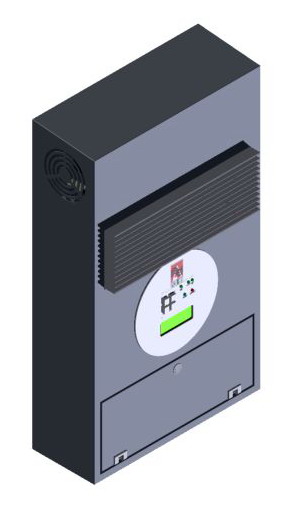

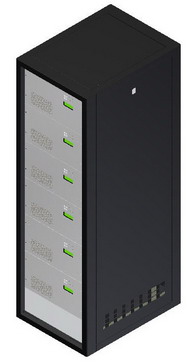

ACPC
PV- series (1 phase & transformer type) |
|
|
| |
Items |
|
Contents
|
|
|
|
|
Model
Name |
|
APPV-C103D |
|
APPV-C105D |
|
|
|
Operation
method |
Output
operating method |
|
Power
plant line connected type |
|
|
|
Input
controlling method |
|
MPPT
(Maximum power point tracking) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Input |
Maximum
voltage |
|
500VDC |
|
|
|
Range
of MPP voltage |
|
200
~ 500 VDC |
|
|
|
Maximum
inputted power current |
|
15A |
|
25A |
|
|
|
Phase |
|
1
phase |
|
|
|
Normal
power |
|
3kW |
|
5kW |
|
|
|
Normal
voltage |
|
AC220V
+10%, -12% |
|
|
|
Normal
hertz |
|
60Hz
+0.5Hz, -0.7Hz |
|
|
|
Normal
distortion |
|
Under
4% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
System
specification |
Efficiency |
|
Over
90% |
|
|
|
Overload |
|
110%,
10 minutes |
|
|
|
Cooling
method |
|
Forcedl
air cooling |
|
|
|
Display |
|
Character
LCD & Keys |
|
|
|
Interface |
|
RS-232C/422
(Option) |
|
|
|
Protection |
|
For
over-under voltage, over-under hertz,
over current, system heating, single operation (Antilslanding, within
0.5 second) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Condition |
Operating
temperature |
|
0
~ 40 °C |
|
|
|
Operating
humidity |
|
0
~ 95% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
